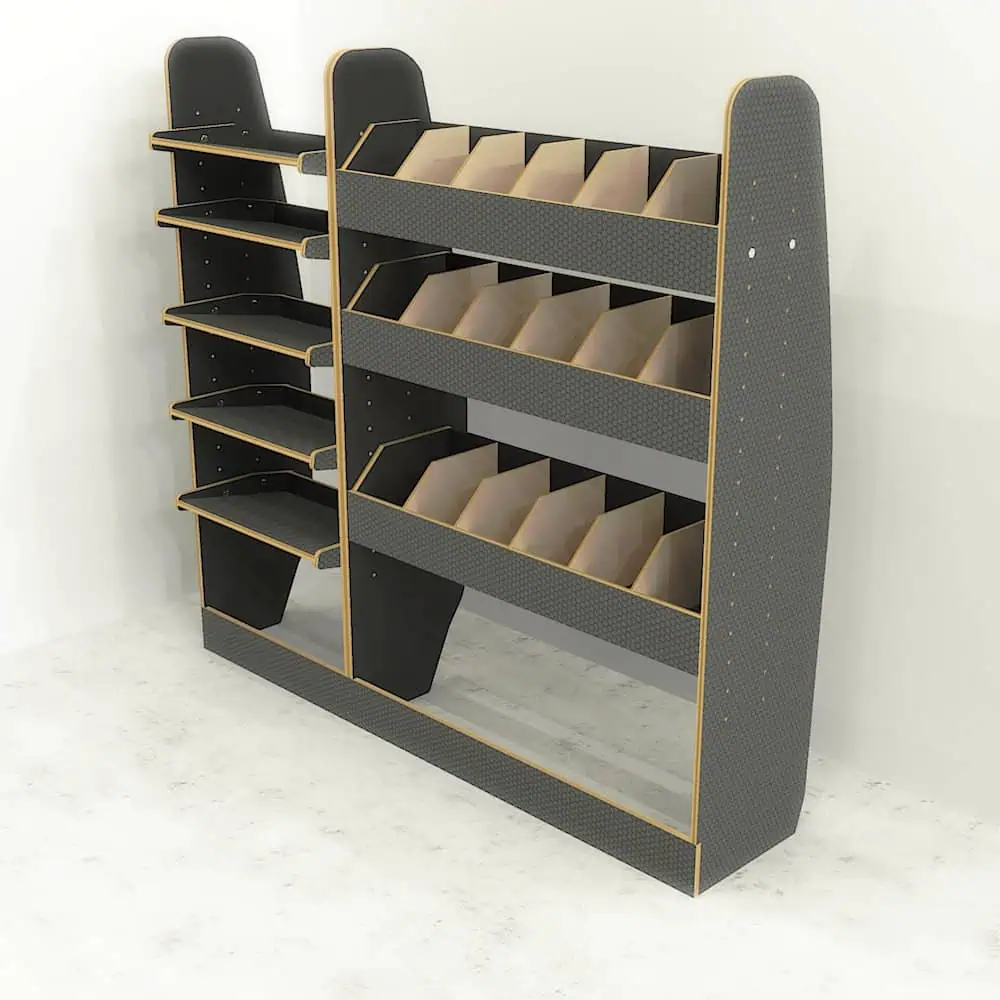

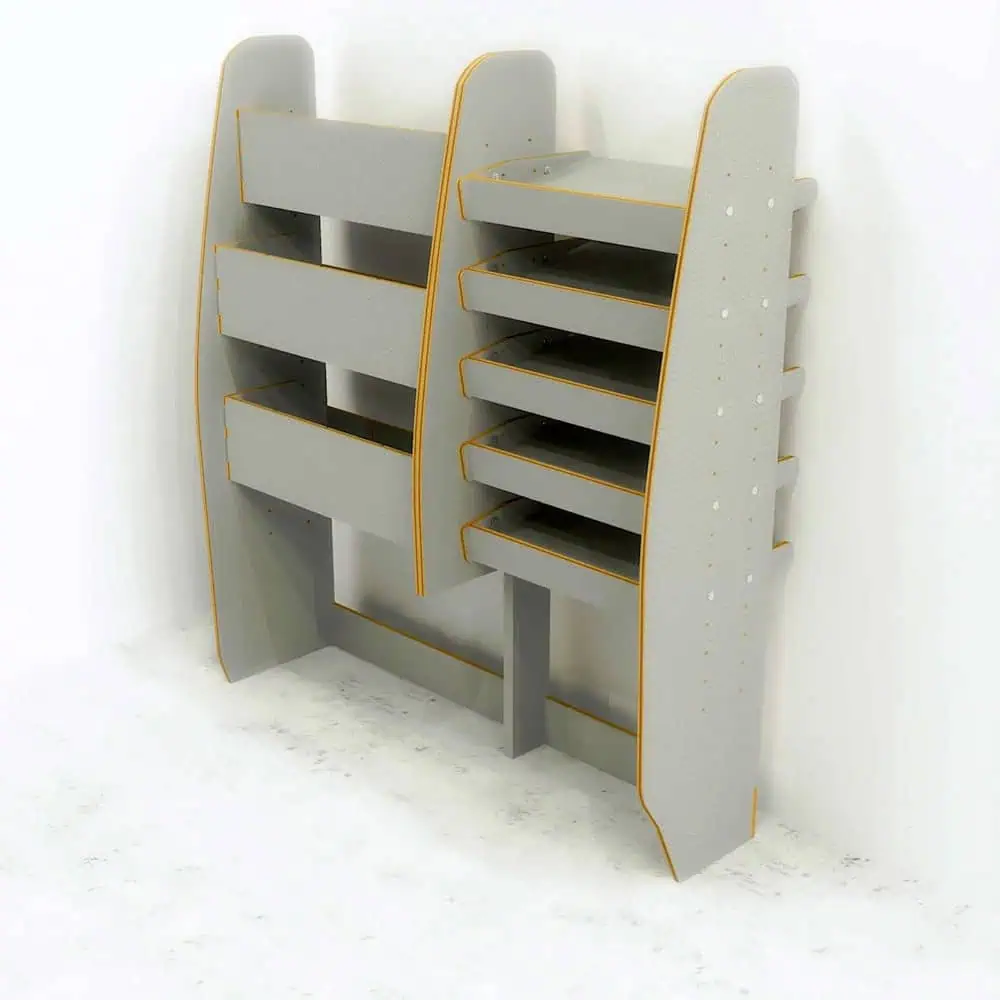

VW Transporter Kombi Lwb Van Racking Rack and Tool box storage

VW Transporter Kombi Lwb Van Racking Rack and Tool box storage

£210.00£296.00

SPECIFICATION

Size of the units

Shelving Assembly: (W)650mm x (H)1300mm x (D)300mm

Internal Shelf depths: 2Nr @238mm, 1Nr @170mm

Power Tool / Tool box storage: (W)500mm (will accept a storage box up to 446mm wide) x (H)1350mm x (D)400mm.

SKU: T6L2KDR
Wheelbase:
Share:

Description

Material Choices - Choose from the drop down menu the following material construction:

  • Manufactured using quality 12mm hardwood Plywood, giving strength and also keeping weight to a minimum.
  • 12mm Hexaboard plywood, giving a highly attractive as well as resilient finish. External faces are Phenolic Hexagonal Pattern the other side Smooth Black Phenolic, 120gm

Both options are constructed using traditional mortise and tenon joints in the front, back, base and sides making the units extremely durable and strong.Shelf Heights are adjustable in 50mm increments

The shelving units are supplied fully assembled that then simply need bolting between side panels. A full fixing kit is provided along with fitting instructions.

This unit consists of 2Nr modules to form an installed length of 1150mm in the van.

Storage Racks:

A 3 tier storage units manufactured from quality 12mm thick hardwood Plywood. with removable 6mm plywood dividers at approximately 120mm spacings which gives the added benefit of a very flexible storage rack. Simply add or remove to suit your requirements.

Power Tool / Tool box storage:

A 5 Tier power tool / tool box storage unit with angle trays which are height adjustable in 50mm increments

Notes: Please be aware that you will need to trim the side panel around the wheel boxes - We cant do this as they all vary. Some trimming of end panels may be required due to differences in ply lining kits.
Please note that extra shelving rows can be requested for an additional cost.

For more information / enquiries, please Contact Vanrack
