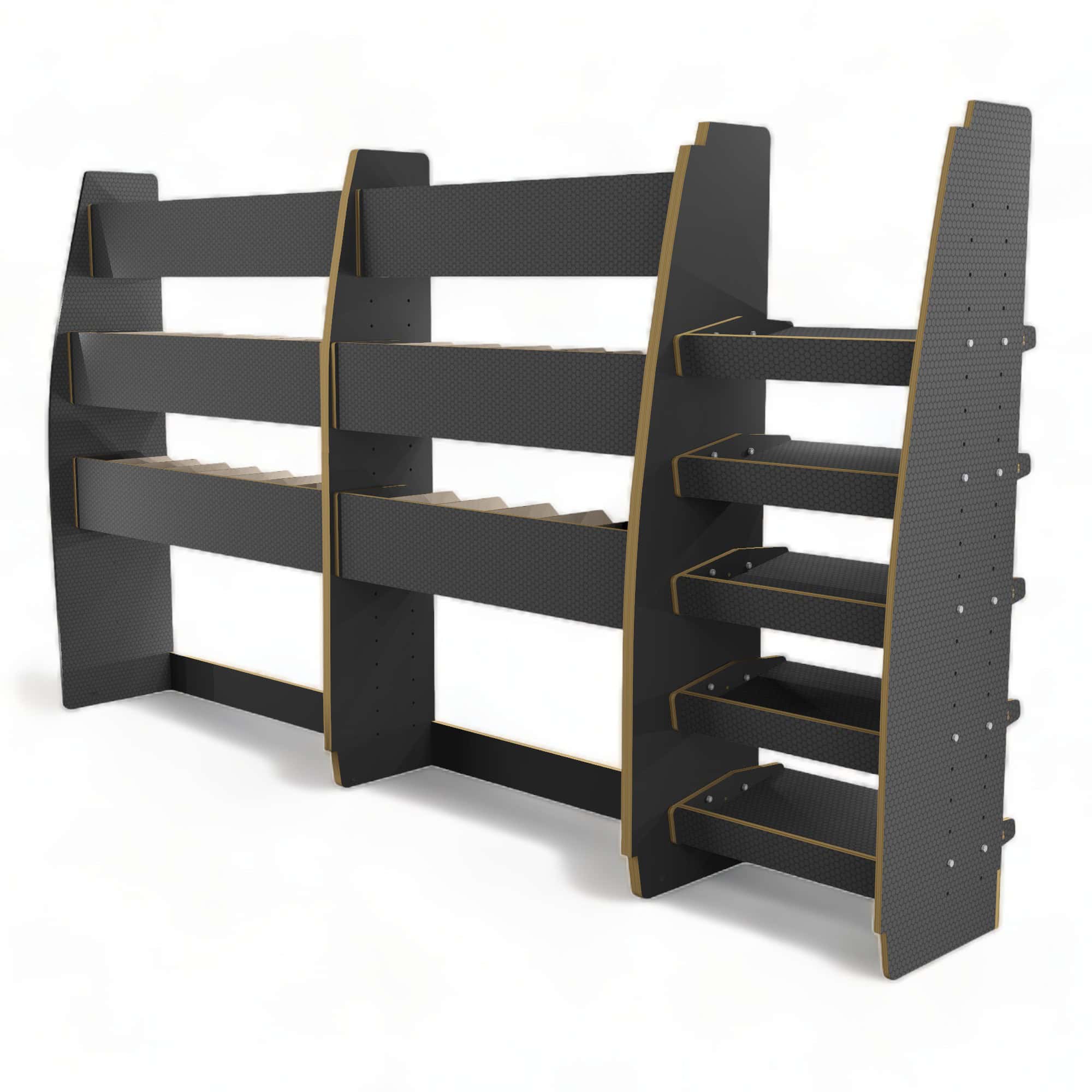

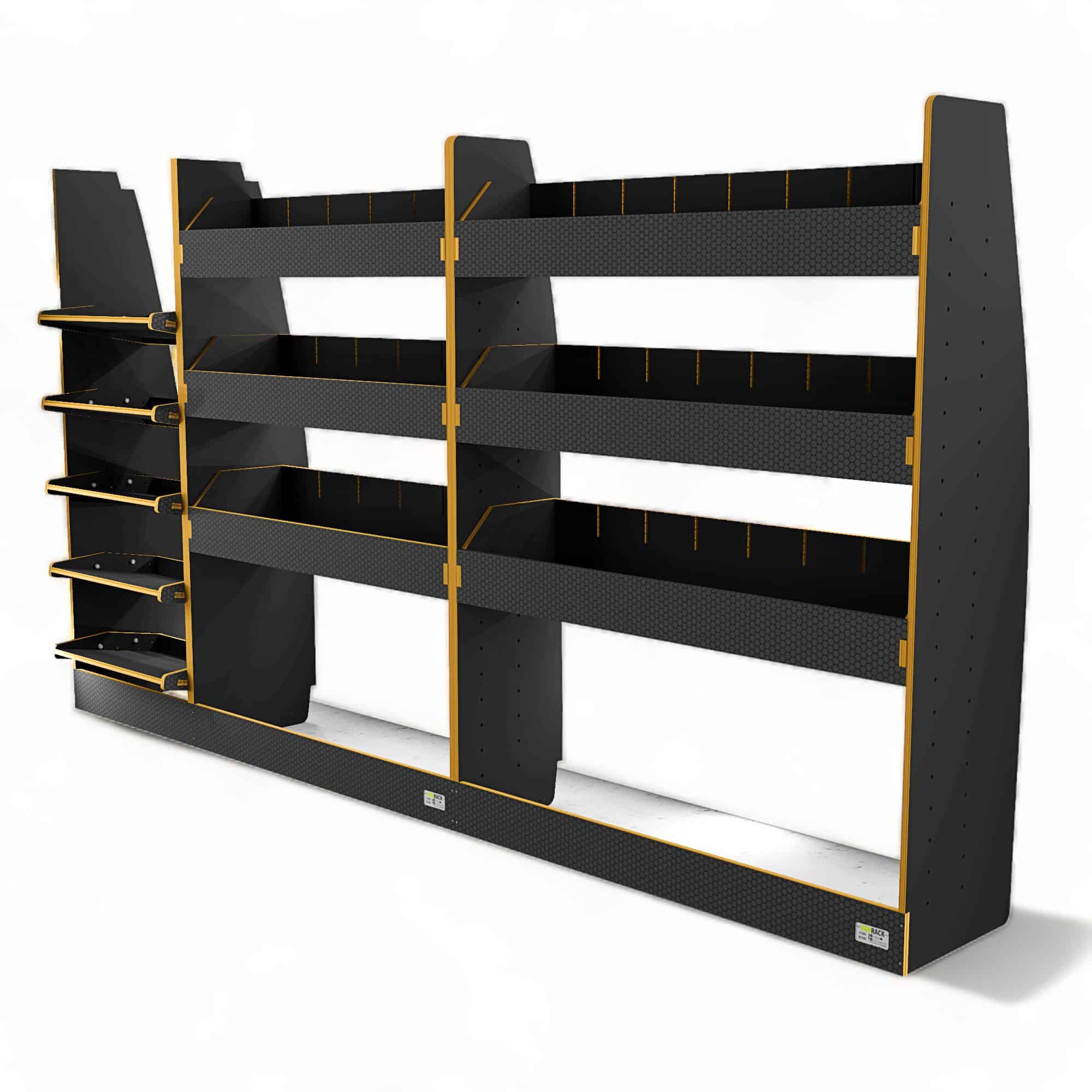

Transit Custom 23 On LWB (L2) Combination Van Racking

Material Choices - Choose from the drop down menu the following material construction:

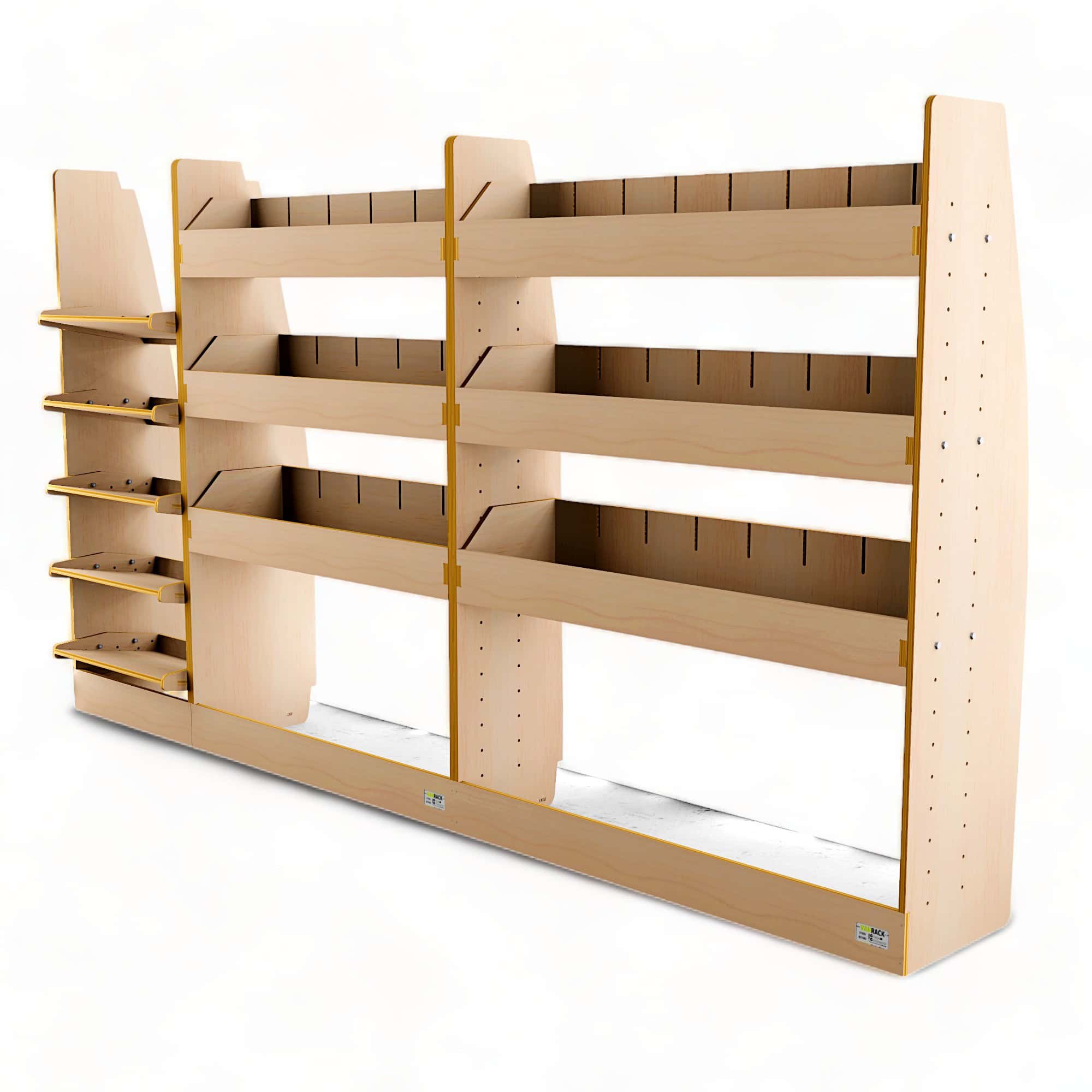

• Manufactured using quality 12mm hardwood Plywood, giving strength and also keeping weight to a minimum.
• 12mm Hexaboard plywood, giving a highly attractive as well as resilient finish. External faces are Phenolic Hexagonal Pattern the other side Smooth Phenolic, 120gm

Both options are constructed using traditional mortise and tenon joints in the front, back, base and sides making the units extremely durable and strong.Shelf Heights are adjustable in 50mm increments

The assembly consists 3Nr modules to form an installed length of 2375mm in the van.

Storage Racks:

2Nr 3 tier storage units manufactured from quality 12mm thick hardwood Plywood. with removable 6mm plywood dividers at approximately 120mm spacings which gives the added benefit of a very flexible storage rack. Simply add or remove to suit your requirements.

Power Tool / Tool box storage:

A 5 Tier power tool / tool box storage unit with angle trays which are height adjustable in 50mm increments

Notes: Some trimming of end panels may be required due to differences in plylining kits.
Please note that extra shelving rows can be requested for an additional cost.
