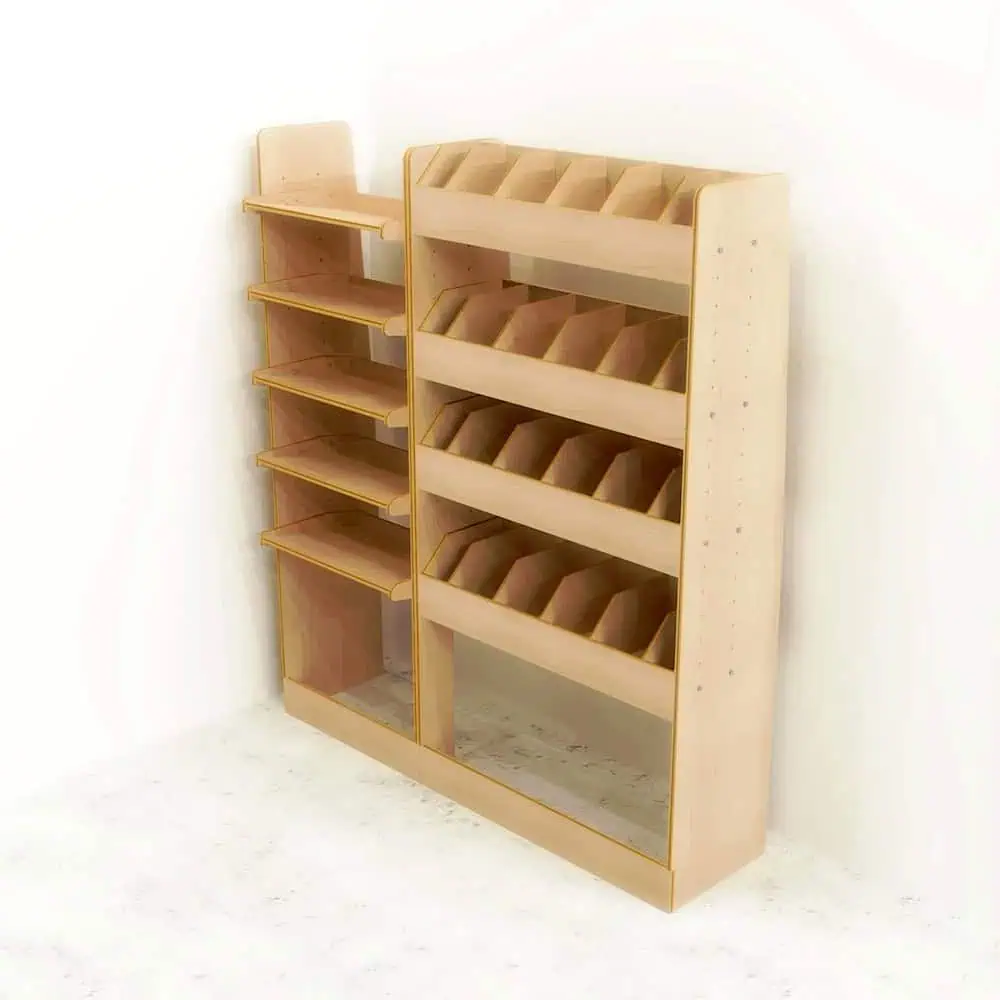

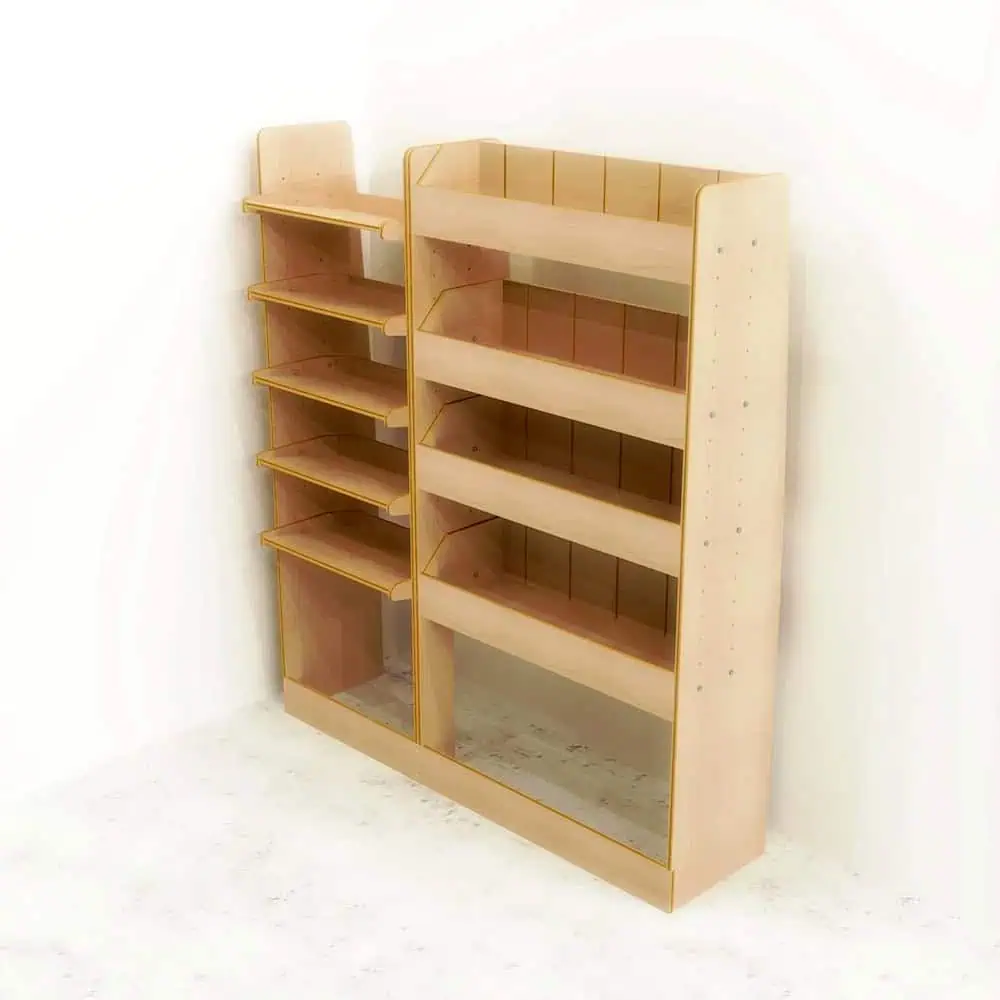

Ford Transit MK8 Combination Van Racking Combination

The assembly consists 2Nr modules to form an installed length of1250mm in the van.

The shelving system is manufactured using quality 12mm hardwood Plywood, giving strength and also keeping weight to a minimum. Constructed using traditional mortise and tenon joints in the front, back, base and sides making the units extremely durable and strong. Shelf Heights are adjustable in 50mm increments.

The shelving units are supplied fully assembled that then simply need bolting between side panels. A full fixing kit is provided along with fitting instructions.

• Qty of Shelves: 4Nr
• Qty of dividing sections per shelf: 8Nr
• Shelf Heights are adjustable in 50mm increments
• The shelving units are supplied with 6mm plywood dividers that slide into machined grooves. These can be added or removed to change the number of compartments required.
• The product is not handed ie this will fit in either the RH or LH side of the van

For more information / enquiries, please Contact Vanrack
